- 1
Quantity

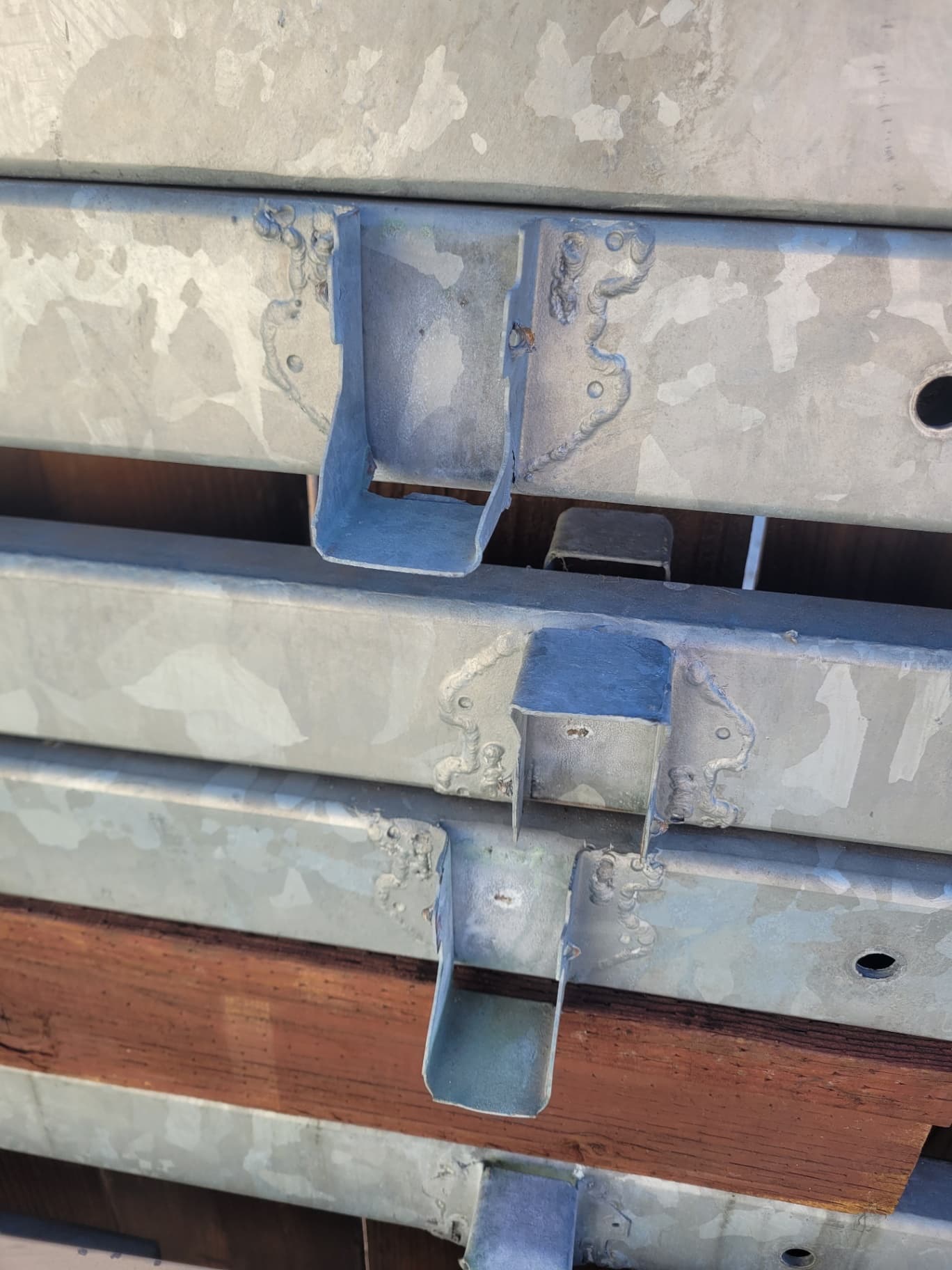

- This package consists of: • Galvanized Steel o 5 - 10' x 2 x 2 x 3/16 w/ 1" x 2 - 1/2" x 18" knife that goes into the 1-1/2" x 3" pieces below. o 1 - 10' x 2 x 2 x 3/16 w/ 5-1/2" x 1-1/2" x 22" knife that goes into the 2" x 6" x 24' piece below. o 5 - 18' x 1-1/2 x 3 x 3/16 w/ 9 - 2x4 hangers welded on one side. o 3 - 18' x 1-1/2 x 3 x 3/16 w/ 9 - 2x4 hangers welded on each side. o 1 - 18' x 1-1/2 x 3 x 3/16 w/ 9 - 2x4 hangers welded on one side and 6 on the other. o 1 - 18' x 1-1/2 x 3 x 3/16 with peak end attachment o 1 - 24' x 2 x 6 x 3/16 with an 18" extension and step down o 1 - 3'-2" - 5 - 1/2 x 1-1/2 x 3/16 w/ 14" x 12" mounting plate. This is a knife that slips into the 20' piece above for movement. o 1 - 20' x 2 x 3 x 3/16 w/ a 2' - 3 x 1-1/2 x 1-1/2 x 3/16 leg & mounting plate o 1 -12' - 2 x 2 x 3 x 3/16 w/ 2 - 2' - 3 x 1-1/2 x 1-1/2 x 3/16 legs & mounting plates • Corrugated Panel Ondura 6’ - 7” X 4’ Asphalt Corrugated Roof Panel - Tan o 11 - 2/3 length Roughly 4’ – 5” o 11 - 1/3 length Roughly 2’ – 4” o 33 - full length Roughly 6’ – 7” • Pressure treated 2x4s o 27 Roughly 6' (slightly shorter for 6’ OC. o 8 Roughly 18' (slightly shorter for 6’ OC. o 9 Roughly 12' (slightly shorter for 6’ OC. • Misc. Fasteners o ½” and 3/8” Bolts, lock washers and nuts o Screws to fasten panels to wood o Misc. splice plates. o Misc. wood screws.
Specifications
- ---
Other
- new
Condition

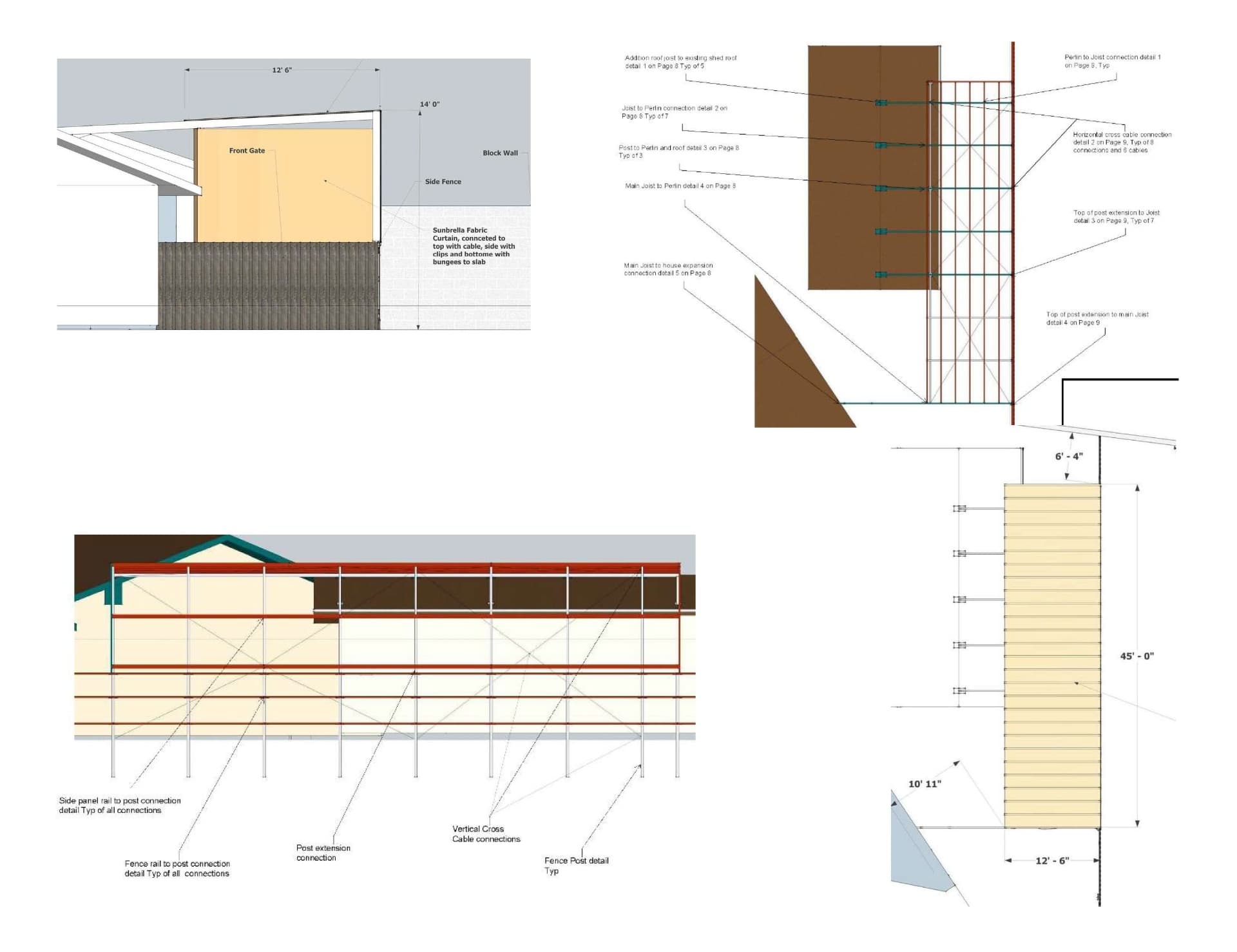

This is most of the material that I used to create a RV garage for a 40’ coach. This material will build a 30’ structure similar to the ones in the drawings. It was Designed to slip into 2-1\2 x 2-1\2 steel tube steel fence posts and then roof members resting on the peak of a roof. This is all of the pieces except the 5’ of fence posts, 2 uprights, 2 “joists and the roof attachments for 3 of the “joists”. There is about $7,000 in material not counting the labor for manufacturing or the cost of galvanizing all of the steel. None of the Fence is included, including posts, rails and fence boards. Also, in the drawings, 2 vertical “post extensions” and 2 horizontal (joists) are not included.
