- 1
Quantity
- Finger Width 3" 76mm 4" 102mm 5" 127mm 6" 152mm Total U6-12016 6 10 10 2 28 Specifications: Model U6-12016 Capacity Mild Steel 16 Gauge: 1.6mm Stainless Steel 20 Gauge: .9mm Maximum Depth of Box 6” / 152mm Bending Length 121” / 3073mm Shipping Weight 3200 lbs. / 1452kgs Floor Space w/ counterweight 177" x 29" x 59" 4496 x 737 x 1499mm
Specifications
- ---
Other
- new
Condition

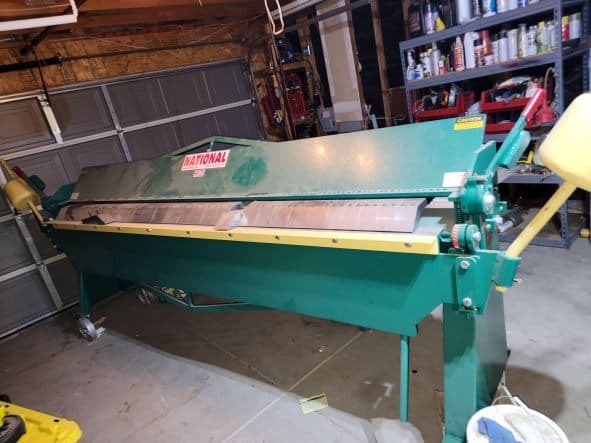

National offers four heavy duty box and pan brakes made in the U.S.A. Standard with heavy body construction, precision bearings on the apron, two large cast iron counterweights and apron stop for repeat bends. The National name means quality. Section fingers are precision machined from rolled steel bar stock for maximum strength. The fingers can be adjusted or removed quickly by the loosening of a cap screw. Heavy duty steel plates and tension bars are precision incorporated for minimum deflection.
