- -12
Quantity
- ParameterValueDetailsTypeTwin-Shaft, Horizontal ForcedEnsures fast and uniform mixing for various concrete types (dry-hard, plastic, etc.).Discharge Capacity500 Liters (0.5 $m^3$)The volume of mixed concrete produced per batch.Feed/Charging Capacity800 LitersThe total volume the drum can hold before mixing.Theoretical Output$\mathbf{\geq 25 m^3/h}$The expected output capacity per hour.Mixing Motor Power18.5 kWThe power for the main mixing shafts.Lifting Motor Power5.5 kWThe power for the winch/skip hopper that feeds aggregate into the drum.Water Pump Power0.75 kW - 1.1 kW (Varies slightly by manufacturer)Mixing Blades14 (2 shafts x 7 blades)The configuration of blades for powerful, multidimensional mixing.Max. Aggregate Size$40/50 \text{mm}$ to $60/80 \text{mm}$Depends on whether the aggregate is crushed stone or cobble.Operation Cycle Time$\mathbf{60 \text{s} - 72 \text{s}}$The time required for one full batch (feeding, mixing, discharging).Machine Weight$\mathbf{\approx 3,000 \text{kg} - 4,000 \text{kg}}$The overall weight (varies slightly by manufacturer and lifting mechanism).Discharge MethodHydraulic (Manual option available)Controls the gate at the bottom of the drum.
Specifications
- ---
Other
- new
Condition

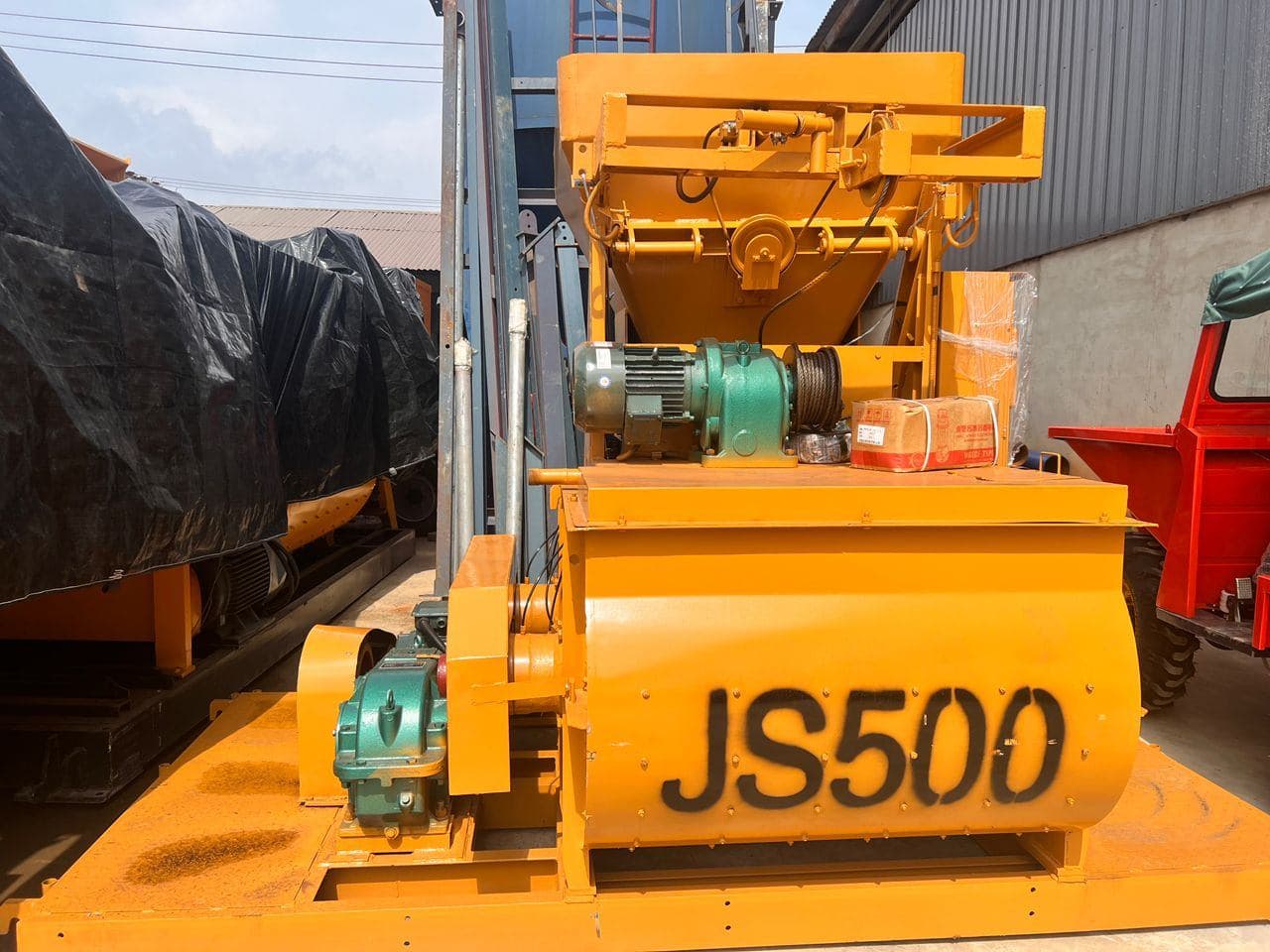

The JS500 Mixer is a widely used and highly effective piece of construction equipment, primarily known as a Twin-Shaft Horizontal Forced Concrete Mixer.
Shengya machinery company
November 7, 2025
